Name: Automatic Servo Motor Soap Bread Flatbread Bag Horizontal Pillow Flow Wrapping Packing Machine Pillow Bag Packing Machine
Brand: TOUPACK
Price: 1 USD

Ask Latest Price

Video Channel

Brand Name :TOUPACK

Model Number :Pillow Bag Packing Machinery

Certification :CE

Place of Origin :China

MOQ :1

Payment Terms :L/C,T/T

Supply Ability :30 days

Packaging Details :Wooden crate packaging

Product Name :Pillow Bag Packing Machinery

function :Wrapping, packaging

Packaging Efficiency :Adjustable speed (30-80 packs/min), frequency conversion speed control, stable operation at high speed

Specification Adaptability :Supports multiple packaging specifications (length 50-300mm, etc.), compatible with heat-sealable films like OPP/PE

Automatic Control :PLC (Programmable Logic Controller) + touchscreen operation, automatic feeding, sealing and cutting, with fault alarm

Sealing Quality :Dual-temperature zone heat sealing, strong and airtight seals, flat cutting surface

Material Compatibility :Suitable for food/daily necessities/pharmaceuticals, etc.; 304 stainless steel used for material-contacting parts

Contact Now

Add to Cart

View Product Description

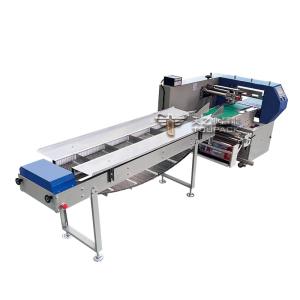

Automatic Servo Motor Soap Bread Flatbread Bag Horizontal Pillow Flow Wrapping Packing Machine Pillow Bag Packing Machine

Advanced Packaging Solution

Triple servo control enables instant bag length setting and cutting without idle adjustment, achieving precise results while saving time and film
High-sensitivity photoelectric color mark tracking with digital input for precise sealing position accuracy
Integrated temperature control module with independent PID regulation for optimal performance across diverse packaging materials
User-friendly touchscreen interface for quick parameter configuration
Self-diagnostic fault function with clear display for easy troubleshooting
Position-stop mechanism prevents blade adhesion and reduces film wastage
Simplified mechanical structure ensures reliable operation and easy maintenance

Our high-performance packaging machinery is designed for vegetables, fresh fruits, noodles, bread, and daily necessities. With fast operation speed, reliable sealing, and intuitive controls, it ensures product freshness while significantly improving production efficiency. This versatile and cost-effective solution is ideal for both food and non-food industries.

Technical Specifications

Model	TY-600X	TY-800
Film width	Max 600mm	Max 800mm
Bag length	100-6000mm	100-6000mm
Bag width	90-220mm	120-300mm
Product height	10-120mm	10-110mm
Film roll diameter	Max 320mm	Max 320mm
Packaging speed	10-25 bag/min	10-80 bag/min
Power supply	220V, 50/60HZ, 3.0KW	220V, 50/60HZ, 4.1KW
Size	394810811463mm	441212001153mm
Weight	650kg	750kg
